ECTFE (32005)

This product can be processed into components such as pipes, valves, housings, and sheets.

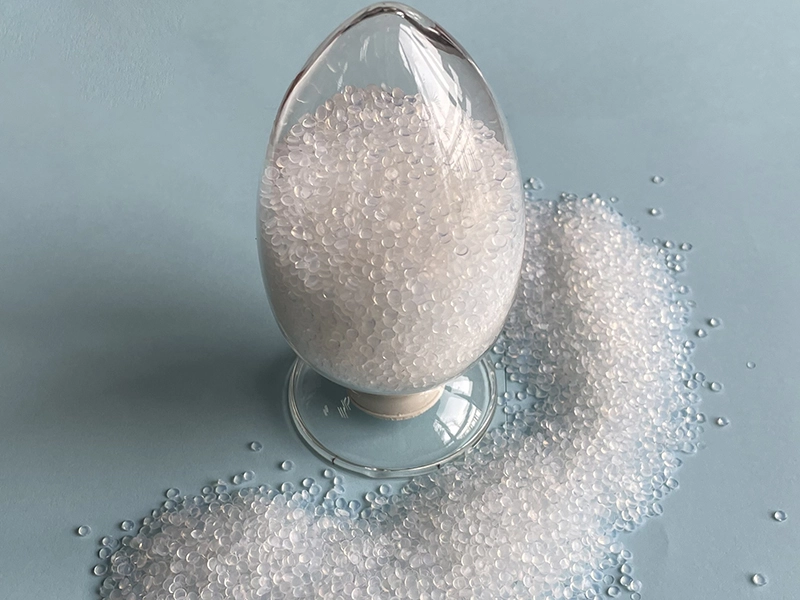

Appearance: white powder or white resin pellets.


Get A Quote
Category: ECTFE
Fluoroplastic
Rubber
Other Chemicals
Application Specification Packaging

  • Application of ECTFE (32005)

    This product can be processed into components such as pipes, valves, housings, and sheets with a usable PH range of 1-14, and are used in the electronics, pharmaceutical, and chemical industries.


  • Specification of ECTFE (32005)

    Test Item

    Test Method

    Unit

    Value

    General Performance

    Specific Gravity

    ASTM D792

    g/cm3

    1.67~1.70

    MFI (275°C, 2.16kg load)

    ASTM D1238

    g/10min

    1-3

    Melting Point

    ASTM D3418

    °C

    210-220

    Water Absorption Rate

    ASTM D570

    %

    ≤0.10

    Max Operating Temperature

    /

    °C

    150

    Thermal Decomposition Temp

    ASTM D3418

    °C

    ≥380

    Mechanical Performance

    Tensile Strength

    ASTM D638

    MPa

    ≥30

    Elongation

    ASTM D638

    %

    ≥250

    Flammability Performance

    Flame-retardant Rating

    UL94

    -

    V-0

    Oxygen Index

    ASTM D2863

    %

    56

    Electrical Performance

    Volume Resistivity

    ASTM D257

    Ω cm

    1016

    Dielectric Constant

    ASTM D150 (23℃ 1MHZ)

    /

    2.18

    Dielectric Strength

    ASTM D149 (23℃ 3.2mm)

    KV/mm

    30


  • Packaging of ECTFE (32005)

    • Powder: 20KG/drum, pellet: 25KG/drum.
