ECTFE (31010T)

This product is topcoat of heavy-duty coating.

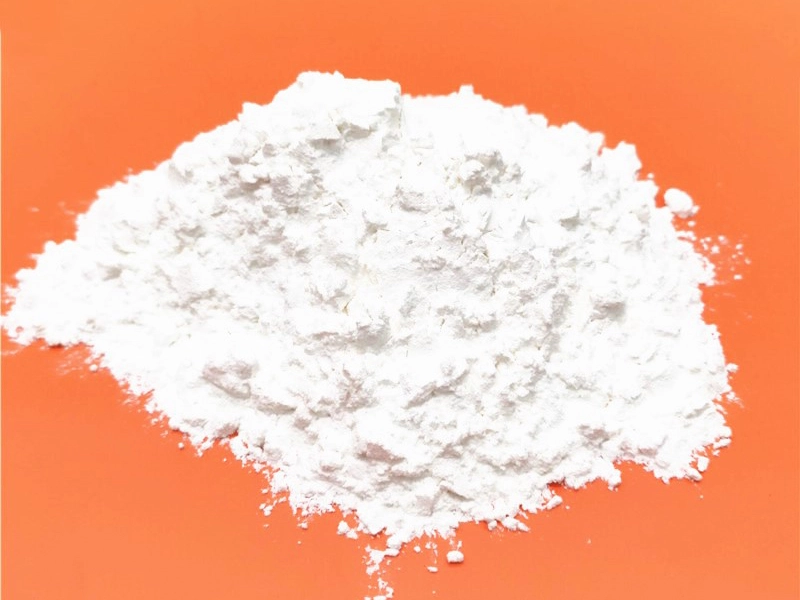

Appearance: white powder.


Get A Quote
Category: ECTFE
Fluoroplastic
Rubber
Other Chemicals
Application Specification Packaging

  • Application of ECTFE (31010T)

    It can be applied via electrostatic spraying to provide protective coatings for ductwork, reactors, pipelines, storage tanks and mixers in the chemical and semiconductor industries, thereby extending the service life of the equipment.


  • Specification of ECTFE (31010T)

    Test Item

    Test Method

    Unit

    Value

    General Performance

    Specific Gravity

    ASTM D792

    g/cm3

    1.67~1.70

    MFI (275°C, 2.16kg load)

    ASTM D1238

    g/10min

    10-12

    Melting Point

    ASTM D3418

    °C

    210-220

    Water Absorption Rate

    ASTM D570

    %

    ≤0.10

    Max Operating Temperature

    /

    °C

    150

    Thermal Decomposition Temp

    ASTM D3418

    °C

    ≥380

    Mechanical Performance

    Tensile Strength

    ASTM D638

    MPa

    ≥30

    Elongation

    ASTM D638

    %

    ≥250

    Flammability Performance

    Flame-retardant Rating

    UL94

    -

    V-0

    Oxygen Index

    ASTM D2863

    %

    56

    Electrical Performance

    Volume Resistivity

    ASTM D257

    Ω cm

    1016

    Dielectric Constant

    ASTM D150 (23℃ 1MHZ)

    /

    2.18

    Dielectric Strength

    ASTM D149 (23℃ 3.2mm)

    KV/mm

    30


  • Packaging of ECTFE (31010T)

    • 20KG/drum.
