CHENGDU FLUORINCHEM NEW MATERIAL CO., LTD.

PTFE MICRO POWDER JH-310

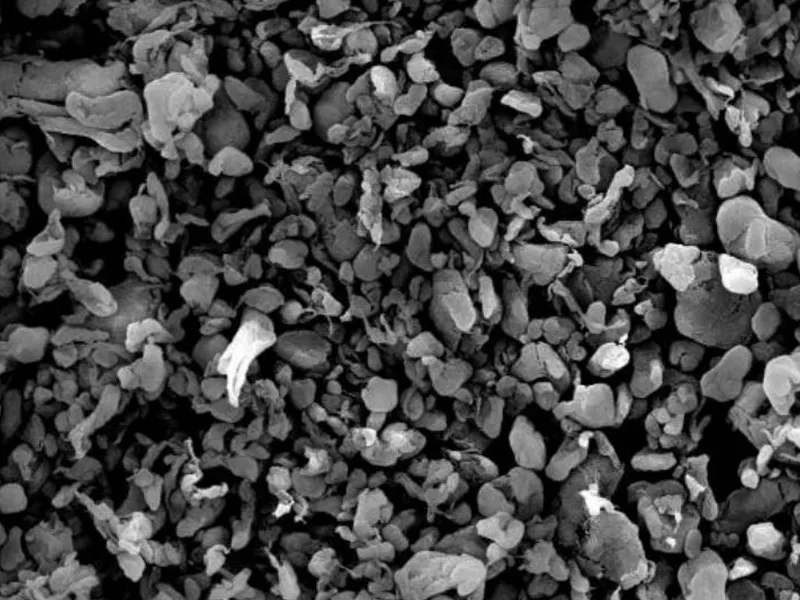

JH-310 is a polytetrafluoroethylene white powder prepared by a special method, with very low molecular weightof5000-10000.The particlesize of thisproductis extremely small which is suitable for customers who have higher requirementsof particle size distribution. JH-310 not only maintains all the original excellent properties of PTFE, but also has many unique properties, such as no self-aggregation, good compatibility, good dispersion, high self-lubricating property, and significantly reduced frictioncoefficient.


JH-310 can be used alone as a solid lubricant, or as an additive for plastics, rubber, paint, ink, lubricating oil, grease, etc. Various typical powder processing methods can be used when mixing with plastic or rubber, such as blending, etc., and the addition amount is 5-20%; when used in lubricating oil and grease, it can increase the viscosity and reduce the friction coefficientof the Substrate.


JH-310 is usually used as a processing aid, and can also be used alone as a lubricant. But it cannot be used to replace high molecular weight PTFE suspension or dispersion resin for extrusion or compression molding.

Get A Quote
Category: PTFE Micro Powder
  • Application of PTFE MICRO POWDER JH-310

    JH-310 is mainly used in paints, coatings, printing inks, lubricating greases and other fields, and can be used to improve the friction resistance,surfacesmoothnessandnon-stick propertiesof products.




  • Specification of PTFE MICRO POWDER JH-310

    ItemUnitIndexTest Method
    D50(average particle size)μm1.5-2.0ASTM D4464
    D90(maximum particle size)μm≤5.0ASTM D4464
    Melting Point°C325ASTM D4591
    Specific Surface AreaM2/g6.45ASTM D5675
    Water Content (%)
    ≤0.05150°C/2h
    Specific Gravityg/cc2.1-2.2ASTM D5675
    Appearance
    WhitepowderVisual inspection



  • Dosage and Usage of PTFE MICRO POWDER JH-310

    In different systems, the amount of JH-310added is generally between 0.5wt% and 3.0wt%.


    Usually, it canbeaddedthroughgrinding,ballmilling,three-roll grinding machines or high-shear dispersing equipment, and high-speed stirring at 1600 rpm.At the same time, when adding micro-powder, it should be added in a small amount for several times or made into wax slurry to make the micro-powder fully wet.

  • Packing & Transportation of PTFE MICRO POWDER JH-310

    Composite paper drum packaging, net weight 20kg/drum, easy to transport and store.


    This product is non-dangerous, please store it away from fire sources and strong oxidants.
