Polyphenyl Ester FC-101

Name: Polyphenyl Ester FC-101
Brand: CHENGDU FLUORINCHEM NEW MATERIAL CO., LTD.

FC-101 is a kind of whole aromatic polyester with superior abrasion-resistance, self-lubrication property, chemical resistance and heat-resistance. It is also named as Ekonol, POB, PHB, OBP.

Get A Quote

Category: POB

Product Description of Polyphenyl Ester FC-101

FC-101 is a kind of whole aromatic polyester with superior abrasion-resistance, self-lubrication property, chemical resistance and heat-resistance. It is also named as Ekonol, POB, PHB, OBP. Its main chain contains p-oxygen benzoyl repetitive structure unit and presents yellow to brownish-yellow crystalline powder.

Molecular structure

We supply FC-101 with average particle size from 6.5 to 100μm.

Application of Polyphenyl Ester FC-101

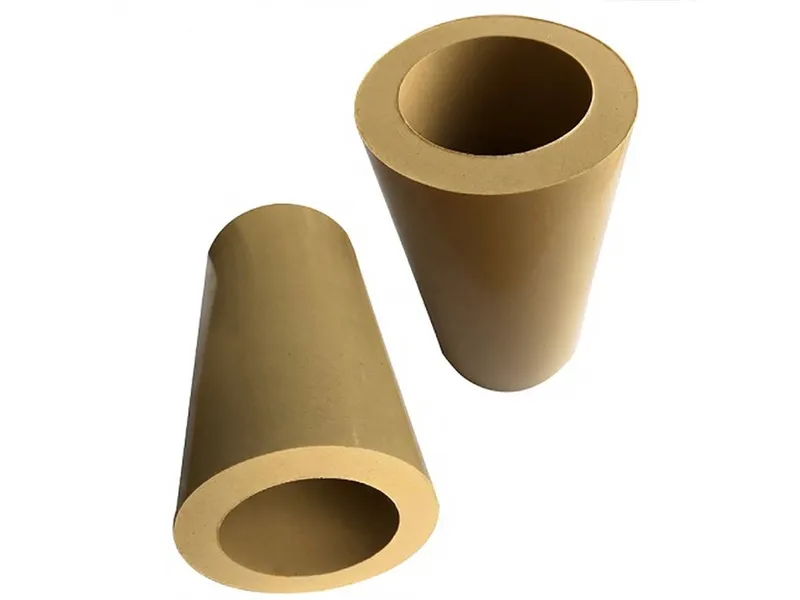

FC-101 can be blended with PTFE to make packing sets, compressor ring sets, “O” ring seals and rotors or vanes of process pumps. Alloy works best under environmentally tough conditions where wear resistance, dimensional stability and corrosion resistance are critical.

Specification of Polyphenyl Ester FC-101

PTFE/POB alloy properties (15-40wt% POB)

Item	Unit	Value
Density	g/cm³	1.82-2.30
Tensile strength	MPa	12-18
Elongation at break	%	80-210
Shore hardness	shore D	60-65
Compressive strength	25% deformation, MPa	25-45
Yield strength	MPa	18-22
Compression creep	14MPa, 24Hr	2.5-4.2
Compression set	25℃, 14MPa, 24Hr	2.4-4.0
Friction coefficient	P=2.09Kg V=1.55m/s	0.12-0.3
Width of grinding	dry grinding, mm	5.0-6.0
Coefficient of thermal expansion	1/℃	1.3-1.6*10^-4
Molding shrinkage	%	1.5-2.0

Packing, Storage & Transportation of Polyphenyl Ester FC-101

Packed in double-layer plastic bag inside, and hard drum outside. 20kg net weight per drum.
Transported as non-dangerous chemical, prevent from humidity, intense vibration, and package damage.
Stock in clean, cool, and dry warehouse, prevent from dust, moisture, or other impurities.
