Perfluoroisobutyronitrile

Perfluoroisobutyronitrile is a new type of environmentally friendly insulation and arc extinguishing gas. It has been widely used to replace SF₆ in electrical equipment, such as gas insulated closed assembly (GIS), gas filled cabinet (C-GIS), gas insulated circuit breaker (GCB) and gas insulated pipe bus (GIL), etc. It has low toxicity, low GWP value, and better arc-killing performance than SF₆. It can be used alone or in combination with one or more of the gases such as CO₂, N₂, and O₂.

Get A Quote

Category: Fluorinated Fine Chemicals

Specification Packaging Notes

Specification of Perfluoroisobutyronitrile

Technical Properties

Component	Unit	Property
Perfluoroisobutyronitrile Content	wt%	≥99.0
Other	wt%	≤1.0

Physical and Chemical Properties

Item	Unit	Index
Chemical Name	----	Perfluoroisobutyronitrile
CAS	----	42532-60-5
Molecular Formula	----	C4F7N

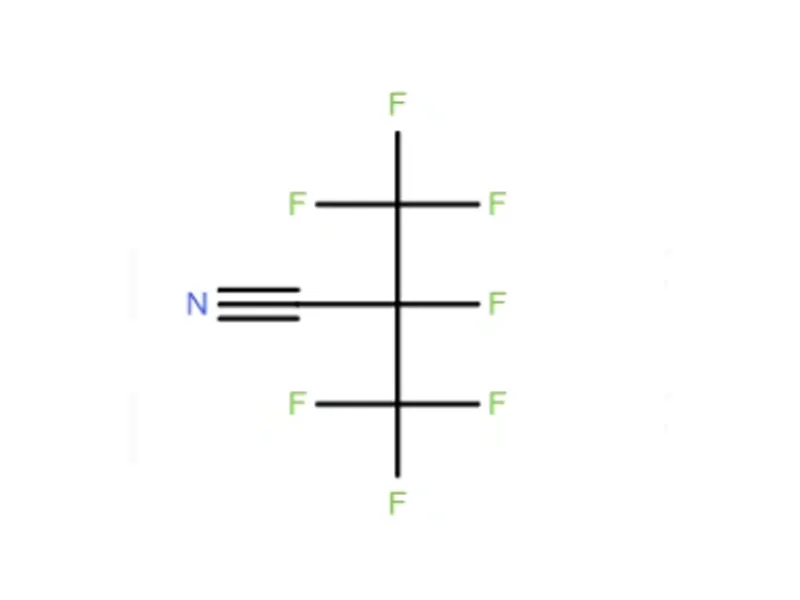

Structural Formula	----
Molecular Weight	g/mol	195.04
Boiling Point (1 atm)	℃	-4.7
Critical Temperature	℃	112.8
Saturated Vapor Pressure（20℃）	kPa	253

Packaging of Perfluoroisobutyronitrile

This product is filled in steel cylinders. The packaging specification of the steel cylinder is 200 kg/200 L steel cylinder, and the filling ratio of the steel cylinder is 1 kg/L. Product tag and certificate of quality are attached outside of the steel cylinder, indicating the brand, trademark, and batch number.
Notes of Perfluoroisobutyronitrile

1)The product must be stored with good ventilation devices, and avoid sunlight, and the ambient temperature is below 25℃.
2)The product is transported as hazardous chemicals. Avoid heat or severe vibration during transportation.
